Send MessageSelf-Priming Grain Grinder
The claw type grinder is designed for dry materials, producing uniform powder or coarse particles. It offers higher grinding precision than other grinders, with moderate output, making it suitable for farms, family operations, and small-scale agricultural processing.
The machine consists of a self-feeding duct, feed inlet, rotor stator grinding chamber, and discharge outlet. Material is automatically drawn into the chamber and reduced through impact and friction at high speed. Finished particles pass through the screen, while larger material stays inside for continued grinding.

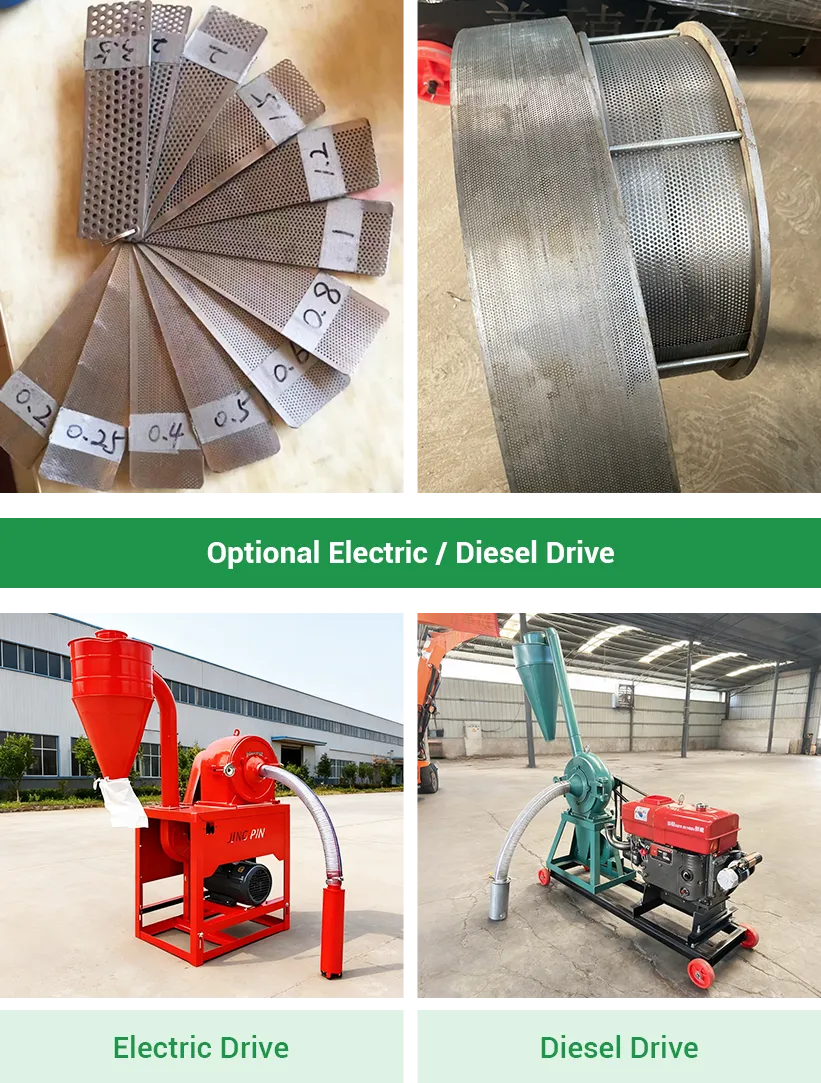

Output size can be adjusted from 0.2 to 10 mm by changing screens to match different material requirements.

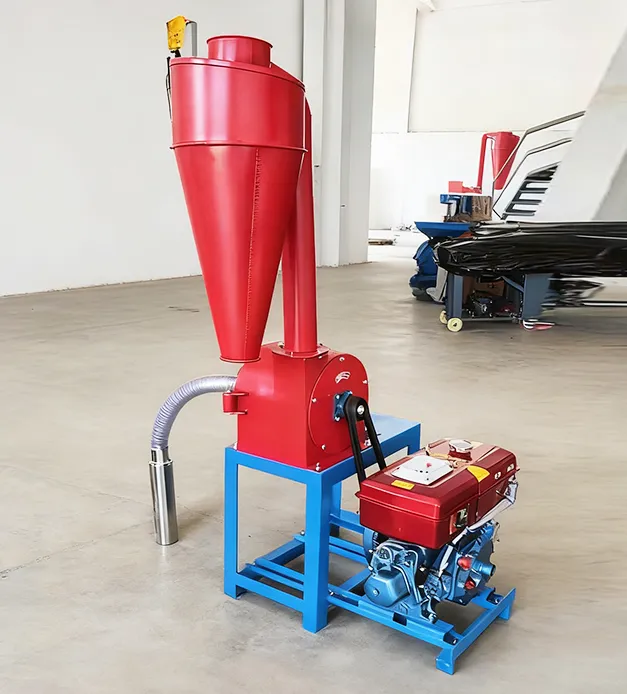

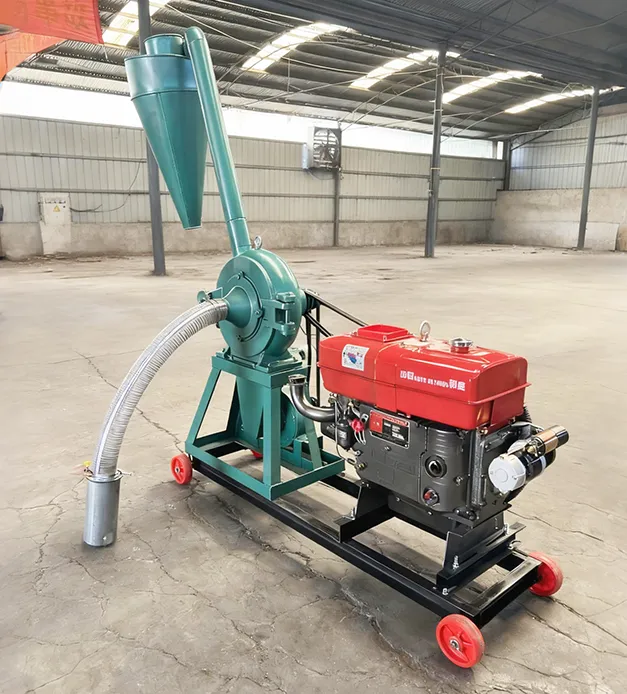

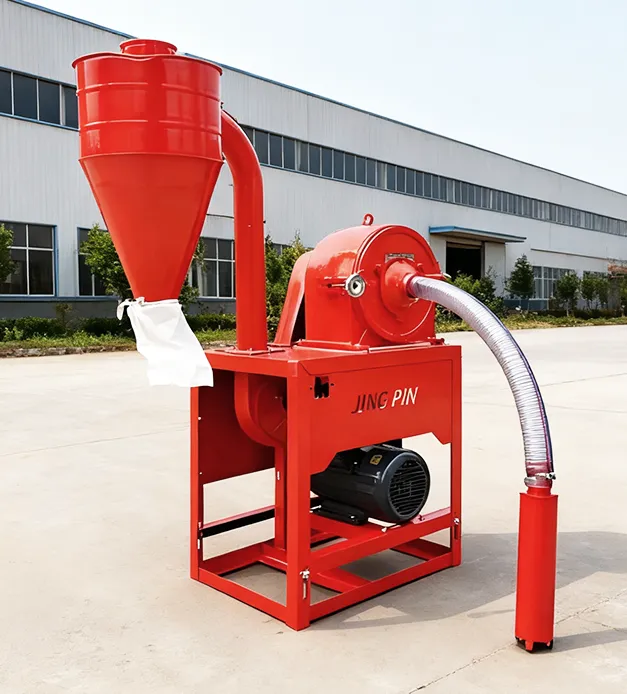

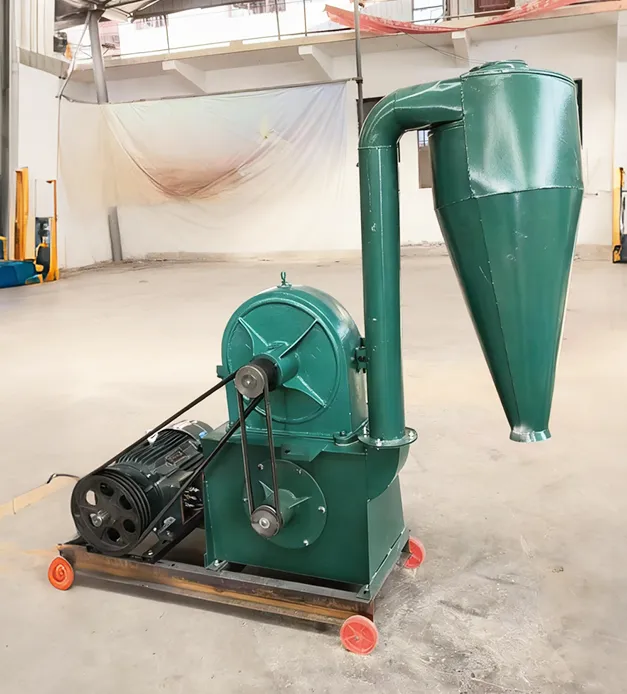

The machine supports electric and diesel power options, allowing flexible selection based on on site power conditions.
Common Materials Processed
Grains
Corn, wheat, sorghum, oats, dehulled rice, soybeans, peas, soybean meal
Dry Agricultural Products
Dried chili, dried garlic flakes, Sichuan pepper, spice materials
Discharge Particle Size by Screen Opening
Key Advantages
- Self-feeding system reduces manual loading
- High power motor with optional diesel drive
- Wear resistant parts for long service life
- Screen sizes from 0.2 to 10 mm for flexible output
- Optional wheels for easy movement
Video
Product Parameters
Electric Motor Specifications
|
Model |
Power (kW) |
Capacity (kg/h) |
Total Weight (kg) |
|
280 |
4.5 |
400–800 |
95 |
|
300 |
7.5 |
500–1000 |
130 |
|
360A |
11 |
1500–3000 |
264 |
|
360B |
11 |
1500–3000 |
269 |
Diesel Engine Specifications
|
Model |
Diesel Power (HP) |
Capacity (kg/h) |
Total Weight (kg) |
|
280 |
8 |
400–800 |
125 |
|
300 |
12 |
500–1000 |
160 |
|
360A |
18 |
1500–3000 |
294 |
|
360B |
18 |
1500–3000 |
29 |
Product Information Download
FAQ?
What is a claw type grinder used for?
A claw type grinder is designed for dry materials such as corn, wheat, soybeans, dried chili, and spices. It produces uniform powder or coarse particles for basic feed and agricultural processing.
Can it process wet or oily materials?
This machine is best suited for dry, low moisture, and low oil materials. High moisture or oil content may cause clogging and affect performance. The self-feeding system works better with lightweight dry materials.
How is it different from other grinders?
Claw type grinders focus on grinding precision and uniform output. They are suitable for fine grinding of dry materials, with moderate output capacity.
How is the particle size adjusted?
Particle size is adjusted by changing screens. Common screen sizes range from 0.2 to 10 mm, depending on the model and material.
