Single And Three Phase Motor Wiring and Protection Guide

Motor power connection and electrical setup are key steps during installation. Voltage, current, and starting method determine cable size, breaker rating, and control wiring. Incorrect setup can lead to hard starting, overload, or failure.

Below is a simple guide to wiring and selection for common 220V single phase and 380V three phase motors.

Cable Selection

Select cables that can carry the motor rated current. Higher current requires a larger cable cross section. Material type and cable length should also be considered.

Conductor Material

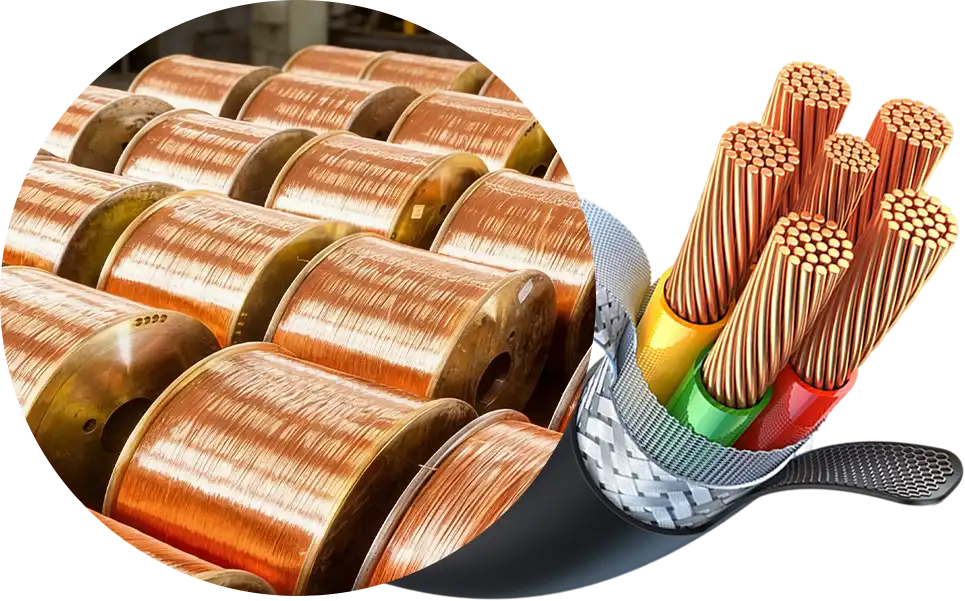

Copper cables offer better conductivity and are suitable for higher current and demanding electrical applications. In most modern installations, copper has largely replaced aluminum conductors.

Aluminum conductors carry about 70 percent of the current capacity of copper. They are more prone to oxidation and creep, and provide less reliable connections. They are usually used only in low cost or temporary power systems.

Cable Cross Section

Cable cross section is directly related to current. Higher current requires a larger cross section to prevent overheating or damage from overload.

Select the cable size based on installation method, ambient temperature, and allowable voltage drop.

Cable Length

Current flow through a cable causes voltage drop, which reduces the voltage at the motor terminals. For long supply distances, check the cable size against the allowable voltage drop and increase the cross section if necessary.

Longer cables have higher resistance and greater voltage drop. Use a larger cross section for long runs to minimize voltage loss.

Motor Starting Methods

*The power ranges shown are typical reference values. Select the starting method based on power supply capacity and allowable voltage drop.

Motor Power Connection

Install a circuit breaker or overload protector between the motor and the power supply to protect the equipment from overcurrent and abnormal operation.

Note: For three phase systems, star delta starting, or soft starter systems, installation and commissioning should be performed by a qualified electrician.

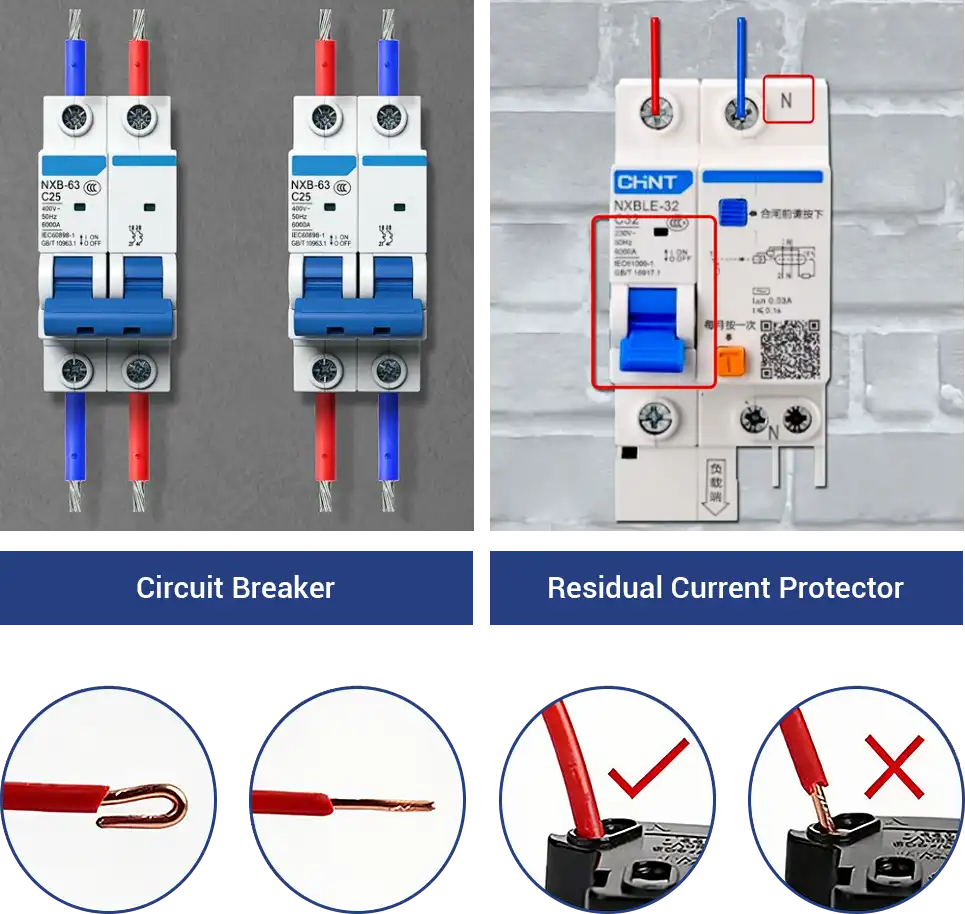

Single Phase Direct on Line Wiring

This method applies to single phase 220V motors. Follow the voltage rating and wiring diagram on the motor nameplate.

1. Switch off the main power supply and confirm the circuit breaker is in the OFF position.
2. Strip the cable to the required length and expose clean copper conductors.
3. Connect the neutral N and live L wires to the breaker output terminals and tighten securely.
4. Connect the motor live and neutral wires to the corresponding terminals and tighten firmly to ensure a reliable connection.

Three Phase Direct on Line Wiring

Due to the complexity of three phase motor wiring, installation should be performed by a qualified electrician.

For safe and reliable operation, the following protection and control devices are typically required:

1. Disconnect the power supply to prevent electric shock during wiring.
2. Connect the three phase lines L1, L2, L3 to the breaker input terminals L1, L2, L3 in sequence, and connect the ground wire properly.
3. Connect the breaker output terminals to the contactor input terminals L1, L2, L3.
4. Optional: Connect the contactor output terminals T1, T2, T3 to the thermal overload relay input. Then connect the relay output to the motor terminals U1, V1, W1.

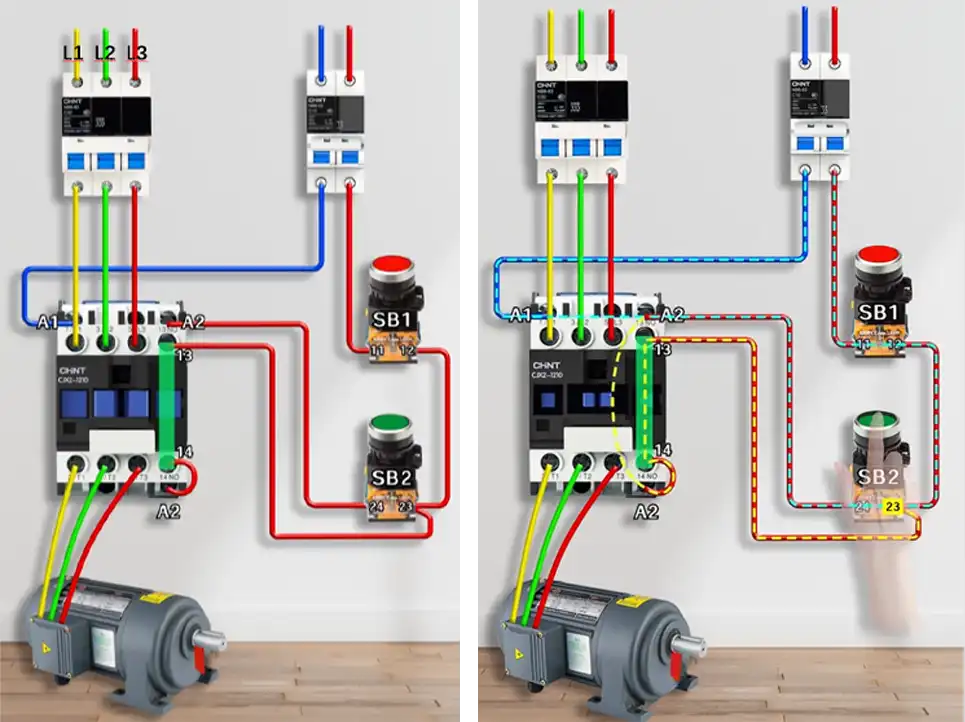

Control Circuit Wiring

This section describes the additional electric start control circuit used to energize the contactor coil.

1. Take the control live wire from the breaker output terminal.
2. Connect the live wire to the normally closed stop button SB1 terminals 11 to 12.
3. From SB1 output, connect to the normally open start button SB2 terminals 23 to 24.
4. From SB2 output, connect to contactor coil terminal A2.
5. Connect contactor coil terminal A1 to neutral N.
6. Connect the auxiliary normally open contact 13 to 14 in parallel with the start button. When the contactor energizes, 13 to 14 closes and forms a holding circuit.

If the motor rotates in the wrong direction, swap any two-phase wires to correct the rotation. For detailed instructions, refer to How to Adjust Flat Die Pellet Mill Reverse Rotation Correctly.

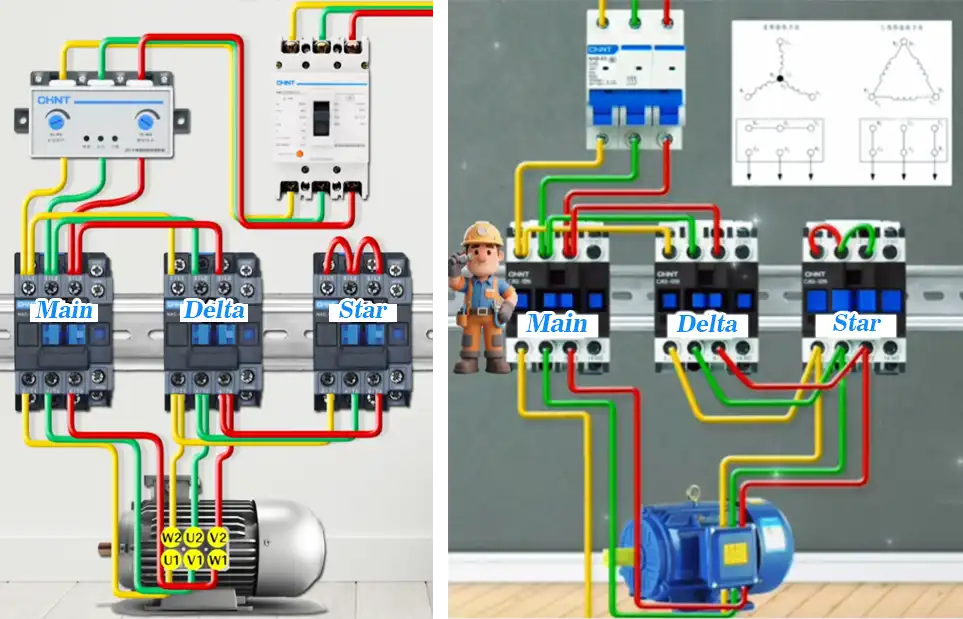

Star Delta Starter Wiring

For higher power motors, star delta starting can be selected based on power supply capacity to reduce inrush current.

This method lowers starting voltage by switching the winding connection. Installation requires three contactors.

Before installing a star delta starter, confirm the motor has six terminals and Delta Star voltage ratings. Ensure the supply voltage is compatible. Use proper interlocking and set a suitable transition time. Installation should be handled by qualified personnel.

Disconnect the power supply. Confirm the motor has six terminals U1 V1 W1 and W2 U2 V2, and that the nameplate supports star delta starting.

1. Connect the three-phase supply through the breaker to the main contactor terminals L1 L2 L3.
2. Connect the main contactor input terminals to the delta contactor input terminals as shown in the diagram.
3. Connect the main contactor output terminals T1 T2 T3 to motor terminals U1 V1 W1.
4. Bridge the star contactor upper terminals to form a common point. Connect its lower terminals to W2 U2 V2.
5. Wire the delta contactor according to the diagram to complete the delta circuit.
6. Connect the time relay and control circuit. Check interlocking to ensure the star and delta contactors cannot energize simultaneously.

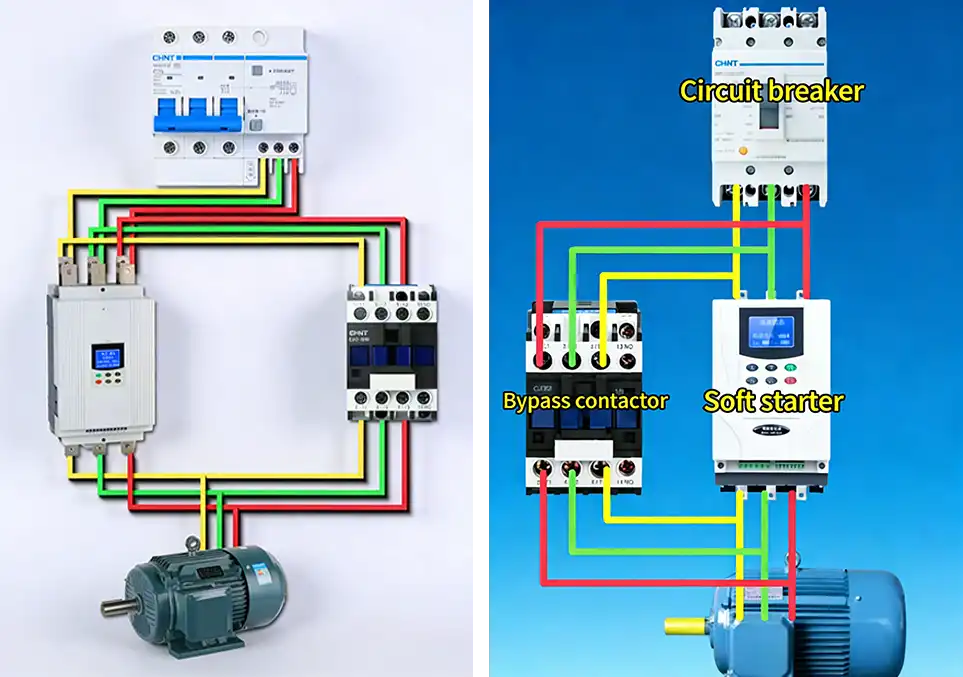

Soft Starter Wiring

A soft starter is recommended for high power three phase induction motors. It uses SCR phase control to increase voltage gradually and provide smooth acceleration.

1. Disconnect the main power supply and confirm no voltage is present.
2. Connect L1 L2 L3 to the breaker input. From the breaker output, route L1 L2 L3 to the soft starter input terminals.
3. Connect soft starter output terminals T1 T2 T3 to motor terminals U V W.
4. Connect the bypass contactor main contacts in parallel with the soft starter output, then connect to U V W.
5. Connect the bypass contactor coil to the soft starter bypass control terminals. The soft starter will engage the bypass automatically after startup.
6. After wiring, check phase sequence, grounding, and terminal tightness. Perform a no-load test run. Confirm smooth starting and bypass transfer before applying load.

Motor Selection Reference Guide

220V Single Phase Motor

380V Three Phase

Suitable for direct on line starting, ambient temperature up to 40°C, and standard installation conditions.

Proper configuration of the motor power system is essential for long term stable operation. Cable size, protection device rating, and starting method should match the motor power, nameplate data, and site power conditions.

If any parameter is uncertain during selection or installation, confirm the technical details before proceeding to avoid unnecessary loss or damage.
