Rotary Drum Dryer

Capacity 1.9-16.2t/h Drum Volume 9-60.8m³

Kawise Rotary Drum Dryer delivers stable performance and can efficiently process a wide range of materials continuously. It is widely used in drying materials like alfalfa, distiller's grains, and wood chips. It also plays a crucial role in industries such as metallurgy, construction, and chemicals.

The rotary drum dryer consists mainly of a horizontal cylindrical body, exhaust pipe, feeding system, discharge system, internal screw mechanism, material lifting blades, induced draft system, transmission system, dust removal equipment, and electrical control components. In actual production, the cylinder is typically arranged at a certain angle to the horizontal to facilitate the smooth discharge of materials.

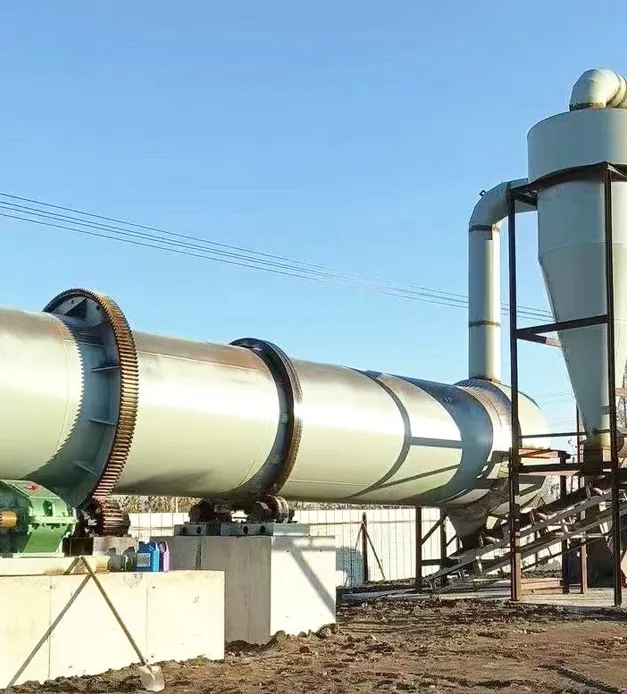

During operation, wet materials and heat sources enter the cylinder from the same end, where they contact the hot air directly. As the cylinder rotates, the lifting blades on the inner wall move the materials, enhancing moisture evaporation and drying efficiency while pushing them forward. The dried materials are discharged from the output end. Fine particles are separated from the hot air using a cyclone dust collector, ensuring environmentally friendly emissions.

Our rotary drum is made of high-quality stainless steel, offering excellent heat resistance, strong overload capacity, and high process load. It also features low oil consumption and operating costs, withstanding temperatures as high as 800°C for reliable, efficient drying performance.

Choosing our rotary drum dryer will ensure an efficient and reliable production process. Contact us for more information.

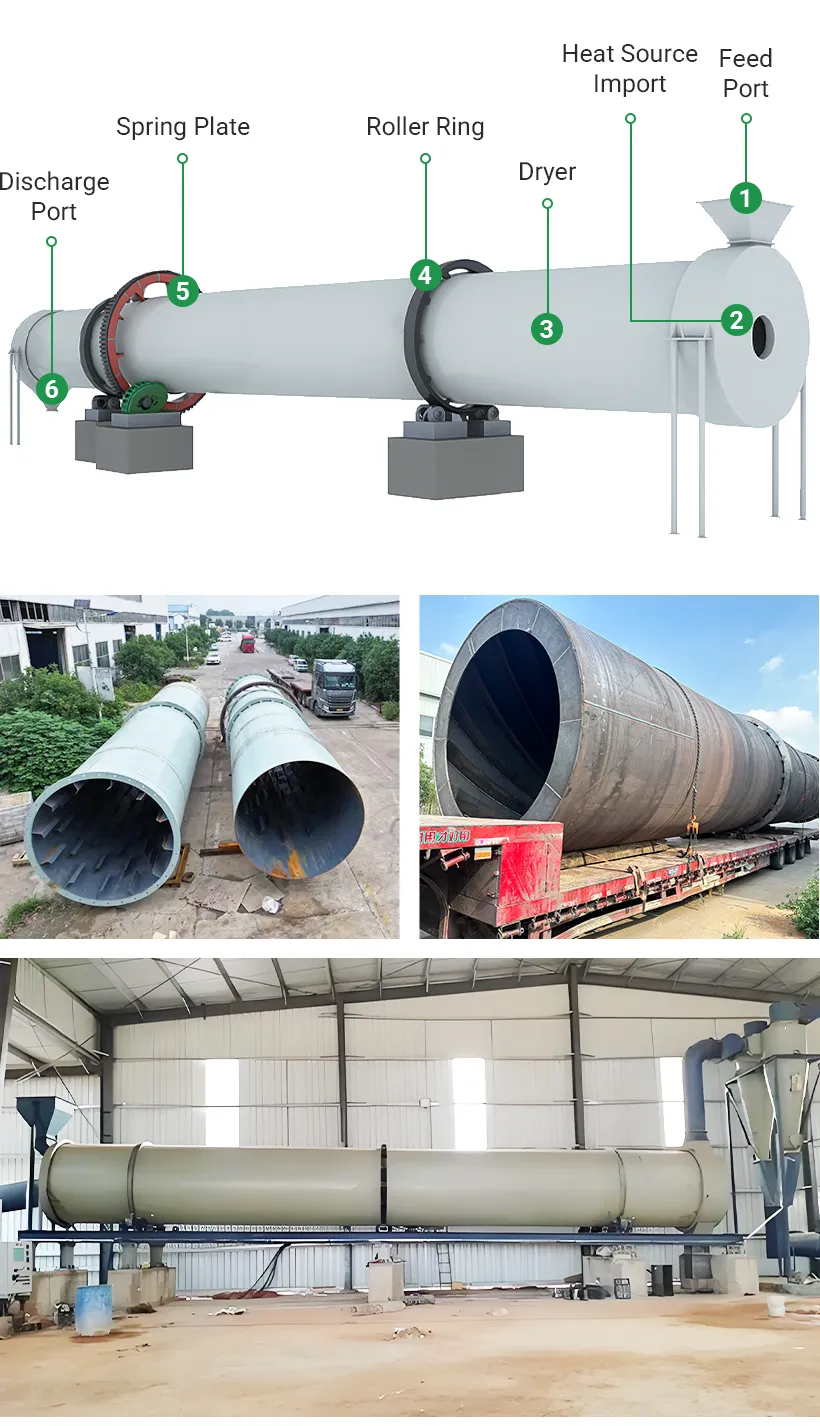

the components of a tumble dryer

Video

Product Parameters

Specification (m) (Diameter × Length)	Drum Volume (m3)	Capacity (t/h)	Installation Slope (%)	Max Inlet Temperature (°C)	Main Motor (kw)
Φ1.2×8.0	9	1.9-2.4	3-5	700-800	7.5
Φ1.2×10	11.3	2.4-3.0	3-5	700-800	7.5
Φ1.5×12	21.2	4.5-5.7	3-5	700-800	15
Φ1.5×14	24.7	5.3-6.6	3-5	700-800	15
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15
Φ1.8×12	30.5	6.5-8.1	3-5	700-800	18.5
Φ1.8×14	35.6	7.6-9.5	3-5	700-800	18.5
Φ2.2×12	45.6	9.7-12.2	3-5	700-800	22
Φ2.2×14	53.2	11.4-14.2	3-5	700-800	22
Φ2.2×16	60.8	13.0-16.2	3-5	700-800	22

Product Information Download

Rotary Drum Dryer.pdf

FAQ?

Are your dryers suitable for handling sticky materials?

For high-moisture and sticky materials, our dryers can be equipped with a breaking device to effectively prevent wet materials from sticking to the walls, ensuring smooth drying.

What types of rotary drum dryers do you offer?

We offer mainly single-cylinder dryers, which are suitable for a variety of materials. We can also customize two-stage or three-stage dryers to improve thermal efficiency and space utilization based on your specific needs.

Is the maintenance of your equipment complex?

Our equipment is designed for simplicity and durability, making maintenance easy. Routine checks and cleaning of vulnerable parts are all that's needed.

How can I determine if the dryer's capacity meets my needs?

Choose the appropriate model based on your materials' moisture content, feed rate, and required drying time. Alternatively, contact our technical team for a customized solution.
